Product Details

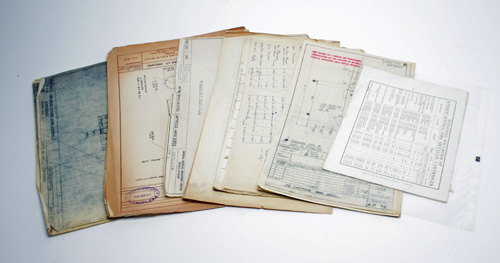

BLUEPRINTS AND LEAFLETS LISTING CHAMBERS AND RIFLING DETAILS FOR CARTRIDGES, VIZ, a) 1935 - ICI Blueprint for .240 Belted Rimless Nitro Express cartridge.
b) 1946 - ICI Blueprint for 6.5 mm Cartridges
c) 1950 - ICI Blueprint for .22 Hornet Cartridge.
d) 1951 - BSA Blueprint re Bore, Chamber & Rifling details for Martini International Mk II & Mk III.
e) 1955 - ICI Blueprint for .308 Winchester Cartridge
f) 1957 - ICI Blueprint for .30 Cartridge
g) 1959 - BSA Chamber & Rifling Details for .243 Winchester (Horse-shoe Extractor)
h) 1961 - BSA Blueprint re 7 x 57mm Cartridge Chamber, Bore & Rifling
i) 1969 - ICI Blueprint for .308 Winchester Cartridge
j) 1954 - Printed Table for Minimum Chamber Dimensions for Rimless Cartridges of British Origin
k) 1961 - Hand written (in pencil) Table for Minimum Chamber Dimensions for Rimless Cartridges, with Liege Proof House comparisons
l) 1963 - Eight pages of hand written and typed Tables for Minimum Chamber Dimensions for Rimless Cartridges, with the caution to, "Check tolerances against scale in RULES OF PROOF" issued in 1954 by the London and Birmingham Proof Houses.
m) c1960 - Three pages of Minimum Chamber Dimensions for Flanged Cartridges of British Origin.
n) c1960 - Pages 87-96 from NOBEL INDUSTRIES book re Standard Ballistics of Kynoch Central-Fire Metallic Cartridge
Please click HERE to view Terms & Conditions.
Estimate £30-40
